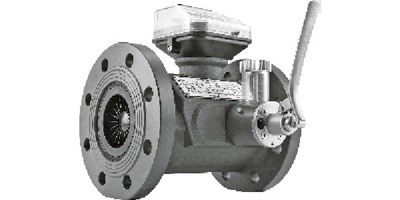

MTM Turbine gas flow meters available in the UK

MTM Turbine gas flow meters are now available in the UK from Bell Flow Systems. Manufactured by Metreg Technologies who offer a complete product range for fiscal and non-fiscal gas flow meters for industrial and commercial applications.

MTM Flanged Gas Turbine Flow Meters have approvals to MID Class 1 (DIN EN 12261:2002) OIML R137-1&2: 2012, PED (PED 97/23/EG). The MTM Gas Meter is suitable for installation in hazardous areas of Category 2 (Zone 1) II 2 G c IIC T4 X. MTM Gas turbine flow meters are ideal for commercial metering and custody transfer measurement applications, suitable for measuring natural gas in pipe sizes from DN50 up to DN300 and larger. The flexible measuring cartridge of the.

MTM turbine meter is exchangeable for different pressure housing designs. It can be calibrated in each diameter size to the different G-ratings. Operating pressures up to 100 bar and a volume flow rates of 5 m3/h up to 6500 m3/h depending on the different meter sizes at operating conditions. Available with a choice of flanges, these robust flow meter models have an Aluminium rotor and body made of anodized high strength Aluminium, Carbon Steel or a welded steel construction dependant on size and spec. A Low-frequency pulse is included as standard with HF and multiple pulse options for remote monitoring, data recording and linking with Building Management Systems (BMS) as well as with our MID approved (EVC) gas volume correctors and Telemetry devices.
