Val-Matic’s vacuum priming valves

Val-Matic’s vacuum priming valve is used in conjunction with a central vacuum priming system to prime (fill with water) a centrifugal pump and is typically mounted on the suction piping or pump volute.

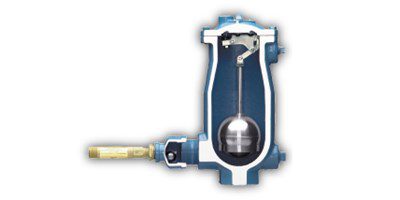

The purpose of a vacuum priming valve is to automatically allow air to be drawn out of the pumping system until the pump fills with water. Then, when the water reaches the priming valve, the float rises and closes the priming valve to prevent fluid from flowing to the vacuum priming system. The priming valve will continue to release air while the pump is running. Val-Matic’s vacuum priming valve features stainless steel trim and float to provide years of trouble-free operation.
