Witt’s smart safety valve

A safety valve for gases with integrated sensor technology and communication interface – this innovation from Witt is now available. The gas technology specialist is thus making an important contribution to networking and digitalisation on the valve sector’s journey to Industry 4.0. For the user, this innovation means more transparency and ultimately greater safety when handling gases.
Safety valves are indispensable in gas applications for protecting people, equipment, and process integrity from overpressure. Safety valves from Witt are spring-loaded and direct-acting. They automatically release overpressure from vessels, pipelines, and equipment before an accident occurs. If the pressure drops below the danger threshold, they close again automatically.

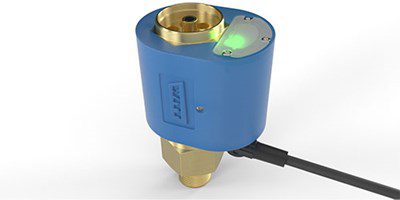

The new, smart valves can do even more: The status of the valve is continuously monitored by integrated sensors and communicated via optical and digital signals. Witt has accommodated the smart function extremely compactly in a box that is firmly connected to the fitting. If the valve opens, this is indicated immediately, optically by a red/green diode directly on the valve and digitally by an NPN/PNP Open Collector signal.
The user can be notified every time there is a demand on the valve and is thus informed of process deviations. This transparency enables early intervention and significantly increases the safety level of the plant.
The new SV805 Smart can be used for all technical gases and is available in brass or stainless steel. The opening pressure is individually adjustable from 0.5 to 45 bar. A TÜV certificate confirming the correctly adjusted opening pressure is supplied by the manufacturer. The permissible temperature range is -30 °C to +60 °C. The component is mounted in any position. The SV805 Smart conforms to the Pressure Equipment Directive 2014/68/EU, category III, module B, and D.
