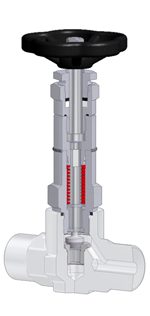

To move the valve stem upwards and downwards without leaks, a multi-layer, metal bellow is used that is welded on the one side to the stem and on the other side to the valve bonnet. Therefore a leakage along the valve stem is not possible.
“Technically leak-proof” properties include:
– Fully flushed, multi-layer stainless steel bellows secured against rotating, designed for 2500 mechanical cycles
– Bellows welded on one side to stem and on other side to valve bonnet
– Non-rotating valve tip in Stellite 6 material
– Safety packing
– Available pressure classes: PN 100, PN 250, PN 400 on request
