Aventics has once again refined its Advanced Valves (AV). Right from the start, simple handling was one of the most important features of the AV valve system series. With outlets on the bottom, the AV system is optimized for installation in control cabinets.

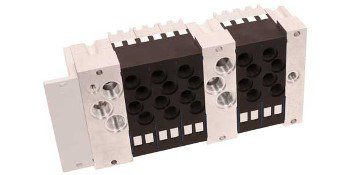

The valve system is flexible in application, extremely lightweight, and offers high energy efficiency. If customers want to install it in a control cabinet, the tubing no longer has to be guided out of the cabinet separately, reducing the mounting effort for the new solution significantly. Both sizes, AV03 and AV05, feature bottom-ported connections, allowing the valve system with up to 32 valves to be mounted directly on the wall of the control cabinet. A foam rubber gasket seals off the system.
Alternatively, the customer can use a metal transition plate, which serves as a pneumatic multipole. Quick installation and deinstallation of the valve system no longer require countless push-in fittings to be disassembled and re-mounted. Instead, the valve system can simply be removed from the transition plate and replaced completely.
The AV system features a modular design and combines up to 64 valves with up to 128 coils in a single system with extension flexibility. During assembly and exchange, the poka-yoke principle prevents components from being installed incorrectly. AES valve electronics connect the AV system to all relevant controls.
