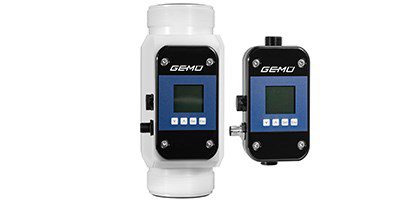

GEMÜ, the valves, measurement and control systems manufacturer, introduces the new GEMÜ 3040 ultrasonic flowmeter. The unit can be used to determine conductive and non-conductive volumetric flows of liquids in a contactless process.
The flowmeter claims to be suitable for a wide range of nominal sizes (DN 10 to 50), lacks moving parts in the media-wetted area, and gives increased accuracy and reproducibility of measurement results. It can be used to measure both conductive and non-conductive media within a pressure range of 0 to 16 bar with an accuracy of 2% of the current measured value. The device can be used in a temperature range of between -10 °C and 80 °C.
Its high-quality plastic body means that the flowmeter can be used for corrosive media, such as acids and alkalis. GEMÜ states that it can be applied to cooling circuits, chemical processes and water supply projects. The illuminated display, installed as standard, means that programming can be carried out directly on-site. Operating parameters can be read directly on the flowmeter and it comes with integrated empty pipe monitoring and a quantity measuring device as standard. To allow easy integration into different applications, all standard electrical and mechanical connections are also provided.
