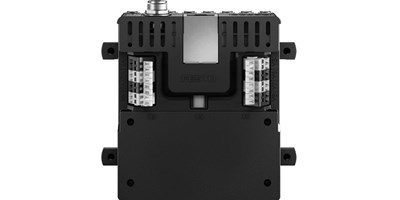

Festo introduces the new VAEM solenoid valve controller for multi-head micro-dispensing in pharmaceutical manufacturing and laboratory applications that require high speed and a low coefficient of variation (CV). The compact and energy-efficient VAEM provides individualized control and calibration of to up to eight solenoid valves.
The VAEM can open a valve in under 2 milliseconds. Rapid and precise control of the valve decreased CV from 3% to less than.5% in laboratory benchmark testing. The VAEM enables users to easily and quickly calibrate flow through individual channels, which improves precision across multi-head systems.
The VAEM employs a “hit and hold” strategy to lower energy consumption. A short burst of high current “hits” the open position, and then the VAEM switches to a minimum current to “hold” the open position for a specified time. The strategy of using current rather than the voltage to control valves diminishes heat build-up and aids in maintaining a specified flow.
VAEM valve controllers are suitable for 2/2- and 3/2-way solenoid valves. They feature RS232 communication. Future iterations of the valve controller will have options for Ethernet, Modbus TCP, and IO-Link. A PC based graphical user interface (GUI) enables users to pre-calibrate the dispense heads and to save the control parameters for standalone operation. External 24 V trigger-input synchronizes the VAEM with other systems. The controller’s dimensions are 3.6 x 3.9 x 1.1 inches (92 x 100 x 28 mm).
