Featured Story – Gazprom UGS boosts daily deliverables

July 28, 2020

Bolstered by an extensive network of underground gas storage (UGS) facilities throughout Russia and Europe, Gazprom increased its maximum daily deliverability to 843.3 million cubic meters in 2019- 2020, an all-time record for the Russian energy industry. According to company estimates, future UGS projects put Gazprom on track to exceed a daily deliverability of 1 billion cubic meters.

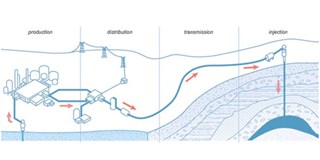

^ Underground gas storage (UGS) facilities are created in depleted hydrocarbon fields, aquifers, or salt caverns. Such UGS facilities provide 20–40 per cent of gas supplied by Gazprom during the heating season.

Article By Daniel Sweet

___

The Russian energy company Gazprom owns and operates the world’s largest gas transmission system, with a total length of 172,600 kilometers. More than half of the company’s customers are located inside Russia, while exports are spread over 30 countries. As part of their extensive energy network, known as the Unified Gas Supply Stream, Gazprom operates a number of underground gas storage (UGS) facilities in high-consumption areas. These UGS facilities supply 20-40 percent of Gazprom’s supply during heating season.

In a recent press release, Gazprom announced a 36 percent increase in maximum daily deliverability during 2019-2020, as compared to the 2009–2010 withdrawal season, with a total of 843.3 million cubic meters supplied. The document attributed this increase to Gazprom’s extensive use of UGS. Given the effectiveness of UGS, the press release also signaled continued investment in the technology, and by the 2030–2031 season, Gazprom hopes to raise daily deliverability by approximately 200 million cubic meters, surpassing the 1 billion cubic meter mark. UGS facilities are referenced as central to the company’s plans going forward, and Gazprom is already in the process of expanding a number of Russian UGS facilities built atop salt cavern formations, including the pioneering Kaliningradskoye site.

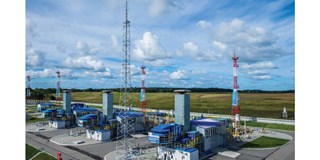

Kaliningradskoye

Kaliningradskoye is located in Kaliningrad, a Russian exclave on the Baltic Sea. With four storage reservoirs currently in operation and fourteen additional reservoirs in planning phases, Kaliningradskoye is a prime site of UGS development in Gazprom’s network. The facility is Russia’s first salt cavern UGS facility. Gazprom’s website describes a number of advantages in the use of salt caverns for UGS: “salt caverns are ideal leak-proof containers thanks to their gas-tight salt domes. Besides, the self-healing capacity of rock salt suppresses fractures and faults. Moreover, it is possible to rapidly switch Kaliningradskoye from injection to withdrawal and vice versa (multiple cycling capability), as well as bringing the UGS facility to its peak performance within the shortest possible time.

UGS: technical details

Source: Gazprom

UGS takes advantage of natural, underground reservoirs to store natural gas. Candidates for UGS include depleted oil reserves, depleted aquifers, and salt cavern formations. UGS facilities help ensure the steady supply of gas during peak times and have become a key aspect of many companies’ energy distribution strategy.

Methods for UGS differ based on company policy and site-specific factors. Gazprom describes the injection and retrieval process for their own UGS facilities as follows: for injection, “gas is routed from a trunk gas pipeline to a site for removing solids, then to a gas metering station, and then to a compressor shop, where it is compressed and supplied to gas distribution stations (GDS) via headers. At a GDS, the general gas flow is divided in process lines, to which well loops are connected.”

“Extraction of gas from an underground storage facility is almost the same technological process as extraction from gas fields, but there is an essential difference: all active (commercial) gas is extracted within the period from 60 to 180 days. Flowing through the loops, it is received at gascollecting stations, where it is gathered in a gas-collecting header. From there, gas is supplied to a separation site for the separation of produced water and solids, and then it is routed to a cleaning and drying site. Cleaned and dried gas is routed to the trunk gas pipelines.”

Phase 1 of the Kaliningradskoye project, consisting of two underground reservoirs and compressor capacities, was completed in 2013. Furthermore, “a 26-kilometer gas pipeline branch was built to connect the UGS facility to the Minsk – Vilnius – Kaunas – Kaliningrad gas pipeline. The facility is also connected to the offshore gas receiving terminal that was brought into operation in January 2019. It is therefore possible to receive gas from the Marshal Vasilevskiy floating storage and regasification unit at Kaliningradskoye.”

Efforts to expand UGS facilities like Kaliningradskoye are underway. Gazprom has publicized plans to increase the number of reservoirs at the site to fourteen by 2025, bringing the facility to design capacity, with working gas inventories of 800 million cubic meters and a daily deliverability of 12 million cubic meters.

Other Russian sites

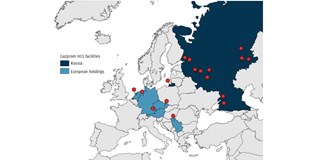

In addition to Kaliningradskoye, Gazprom operates twenty two other UGS facilities in Russia. As is the case with Kaliningradskoye, a number of preexisting UGS facilities across Gazprom’s network are being reconstructed, expanded, upgraded, and reequipped to supplement the company’s gas supply and to drive growth toward an overall daily deliverability target of 1 billion cubic meters. With the benefits of UGS facilities proven, Gazprom is also undertaking plans to build entirely new sites in the Northwestern, Siberian, and Far Eastern Federal Districts. These include four confirmed sites at Arbuzovskoye, Bednodemyanovskoye, Novomoskovskoye, and Shatrovskoye.

At present, geological exploration is underway at several prospective sites. As explained on Gazprom’s website, “the company conducts geological exploration to build UGS facilities in the Russian regions with insufficient or no gas storage capacities. For instance, geological exploration is underway along the gas pipeline route from Ukhta to Torzhok and also in the direction of Arkhangelsk in the Northwestern Federal District, in the direction from Omsk to Tomsk in the Siberian Federal District and along the Power of Siberia gas pipeline’s route in the Far Eastern Federal District.”

European build up

With expansion in Russia currently underway, Gazprom also continues to build up its presence in Europe, often through coinvesting schemes undertaken with other partners. Gazprom’s stated aim with its associated European facilities is to achieve a working gas capacity of at least 5 per cent of the annual exports. Efforts are underway to expand Gazprom’s holdings at the Damborice UGS facility in the Czech Republic, as well as the Katharina and Jemgum UGS facilities in Germany.

Other European UGS sites utilized by Gazprom include Etzel and Rehden in Germany, Haidach in Austria, Bergermeer in the Netherlands, and Banatski Dvor in Serbia.
