HVOF coatings protect component surfaces and extend the service life of parts
In industries that push equipment to its limits—where searing temperatures, corrosive fluids, and abrasive slurries are everyday challenges—failure is not an option. Whether it is a refinery under full load or a mining operation working with pressurised autoclaves, the key to operational reliability lies in materials engineering. One of the most promising advances in this sector is High-Velocity Oxygen Fuel (HVOF) coating technology, a powerful method for extending the lifespan and performance of critical components in severe service environments.
By Kelly Songer – Director of Valve Services – Precision Spray & Coatings
Protecting the backbone of industry
From petrochemical plants and power stations to chemical processing facilities and mining operations, components such as valves, pumps, piping, actuators, seals and gaskets are constantly exposed to aggressive service conditions.
These components face a range of challenges, including abrasive wear from particulates in fluids, erosion caused by high-velocity flows, and corrosion from acids, bases and brines. Added to this is the thermal degradation due to elevated process temperatures and mechanical stress resulting from high pressures and cyclic loading. In such environments, traditional materials often fail prematurely. That’s where HVOF coatings step in.
What is HVOF coating?
A High-Velocity Oxygen Fuel coating is a thermal spray process that creates dense, hard coatings by propelling powdered materials at high velocities onto a substrate. A combination of fuel gases and oxygen generates a supersonic flame that melts or semimelts the powder, which then bonds to the component surface with minimal porosity and excellent adhesion. This process allows manufacturers to create exceptionally durable coatings on components that operate in some of the world’s harshest environments.
Coating materials
The materials used in HVOF coatings fall into three main categories: metallic alloys, carbide-based materials and composites.
Metallic alloys include nickel-based materials such as Inconel 625 and 718, as well as Monel, which are chosen for their heat and oxidation resistance. Cobalt alloys, such as Stellite 6 and 21, are prised for their wear and corrosion resistance and stability at high temperatures.
Titanium alloys like Ti-6Al-4V and commercially pure grades (Grade 2 and Grade 5) are used where strength, low weight and corrosion resistance are required.
Carbide-based coatings provide even higher wear resistance. Tungsten carbide (WC) coatings are widely used in industries like mining and drilling due to their ability to withstand extreme abrasion. Chromium carbide (Cr3C2), on the other hand, excels in high-temperature environments and is common in the petrochemical, oil and gas, and cement sectors. These materials often achieve hardness ratings of 60 to 70 HRC on the Rockwell scale, offering superior protection against wear and erosion.
Composite coatings are engineered to blend hardness with toughness. For example, WC-Co (tungsten carbide with cobalt) combines ceramic hardness with the toughness of a metallic binder. WC-Ni offers similar wear resistance while improving ductility. Additionally, Cr3C2-NiCr (chromium carbide with a nickel-chromium binder) is particularly effective at high temperatures and in corrosive environments. Within this category, the balance of properties can be finetuned. For instance, a CrC 80/20 blend provides more hardness, while CrC 75/25 offers slightly less hardness but improved toughness and corrosion resistance.
Proven benefits in severe service applications
High-Velocity Oxygen Fuel coatings offer a powerful suite of benefits for critical components. Their wear resistance protects surfaces from abrasion and erosion, significantly extending the service life of parts.
They also provide excellent corrosion resistance, safeguarding materials against aggressive chemicals and environmental factors such as saltwater or acidic and alkaline media. In high-temperature environments, such as those found in power generation or catalytic processing, HVOF-applied chrome carbide coatings maintain hardness and mechanical strength, ensuring continuous performance under thermal stress.
Case in point: Ball valves in the line of fire

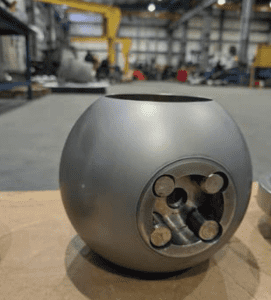

Ball valves, often deployed in high-pressure or erosive flow environments, particularly benefit from HVOF coatings. Coating the seat and ball of the valve reduces damage from cavitation and erosive wear, leading to improved flow control, better sealing performance and reduced leakage. In turn, this means smoother operation, enhanced durability and a longer service life with less need for frequent replacements or downtime.
Repair or replace? HVOF tips the scale
One of the most cost-effective advantages of HVOF coatings is the ability to rehabilitate existing assets rather than replace them. When correctly applied, these coatings can restore worn or damaged parts to near-original condition, often outperforming the base material in the process. This not only preserves capital investment but also reduces lead times and environmental waste associated with full component replacement.
Addressing fugitive emissions
High Velocity Oxy-Fuel coatings play a critical role in reducing fugitive emissions, particularly in components that rely on tight metal-to-metal sealing such as valve stems, seats and flanges. These coatings create exceptionally hard, dense and smooth surfaces that significantly enhance the integrity of mechanical seals.
The smoother finish, often with surface roughness values below 4 microinches (Ra) after precision grinding or lapping, minimises microscopic leak paths that could otherwise allow gases or vapours to escape. This is especially important in high-pressure applications where even minute imperfections can lead to measurable emissions over time.
Beyond improving surface finish, HVOF coatings also offer outstanding resistance to wear and galling—common issues in dynamic components subject to repeated motion.
For example, tungsten carbide-based coatings (such as WC-Co) provide a hard, durable barrier that helps maintain precise dimensional tolerances and sealing geometry even after extensive cycling. This resistance to mechanical degradation ensures that the sealing surfaces remain intact and functional longer than uncoated metals.
High Velocity Oxy-Fuel coatings also offer excellent thermal and dimensional stability, helping components maintain their shape and fit under fluctuating pressures and temperatures. This is particularly valuable in demanding environments like chemical processing plants or oil and gas facilities, where temperature swings and corrosive substances are common.
By adding a layer of corrosion-resistant material—such as chromium carbide- nickel chrome (Cr3C2-NiCr)—these coatings prevent pitting and surface damage that would otherwise compromise the seal. HVOF coatings significantly reduce fugitive emissions by preserving the critical interface between metal parts. Their combined resistance to wear, corrosion and thermal degradation ensures long-term sealing performance and reliability, even under the harshest operating conditions.
Not without challenges
Despite its many benefits, HVOF coating does present some considerations. The application process requires specialised spray equipment and trained personnel. Accurate control of coating thickness is essential as an overly thick coating can interfere with tight tolerances and proper valve operation. Additionally, compatibility between the coating and the substrate material must be carefully evaluated to ensure proper bonding and long-term durability.
The bottom line
In today’s high-performance industrial landscape, downtime is costly and failure is unacceptable. High Velocity Oxy-Fuel coatings offer a proven, effective means of enhancing component resilience in the most demanding service conditions. Whether extending the life of mining equipment or improving flow control in chemical reactors, HVOF technology is rapidly becoming a standard in severe service reliability engineering. As industries evolve, the question isn’t whether you can afford to use HVOF coatings— but whether you can afford not to.
About the expert
Kelly Songer is a 3rd generation industrial manufacturer with 20 years of experience. In 2016, she was featured in a cover story as a ‘Legacy Leader’ by the National Association of Manufacturers. In 2017 she was honoured with the ‘Service Award’ by the Valve Manufacturers Association of America.
