^ GEA’s D-tec® double-chamber valve D/DV

Selected by Daniel Sweet

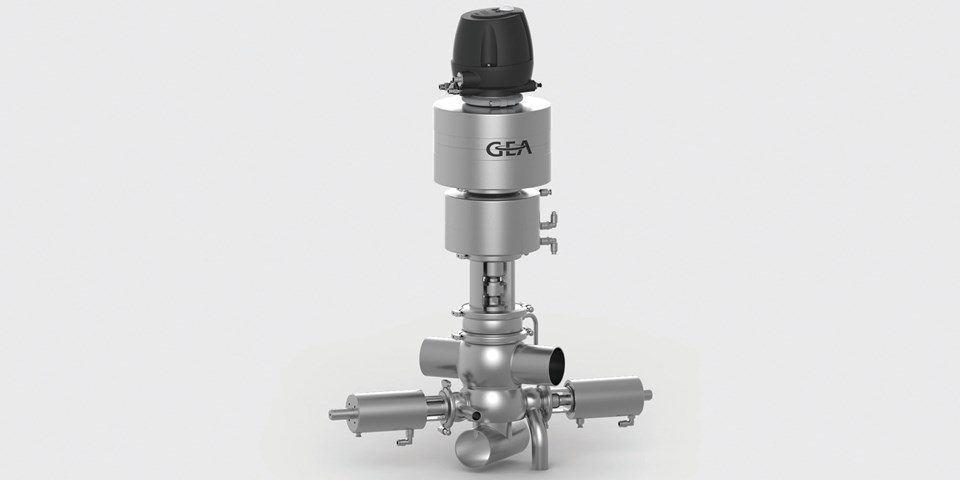

The valve is a special double-seat valve in which the leakage chamber is designed as a sterile chamber and hermetically separated from the environment by two side valves. The sealing properties of the stem diaphragm make it possible to increase the shelf life of soft drinks, fruit juices, milk-based and lactic acid fermented products. If manufacturers adapt the process chain accordingly, D-tec® enables them to achieve the desired shelf life of a product even with fewer preservatives. The diaphragms are made of a thermoplastic that is more flexible than stainless steel.
With the double-chamber valve D/DV, GEA completes its still young valve program, so that customers can now fully equip their production processes with D-tec®. “Equipping the interfaces in process plants with as few valve types as possible is often a decisive criterion for our customers. The more different valve series have to correspond, the more complex the spare parts handling and warehousing becomes,” explains product manager Pascal Bär, who looks after the aseptic valves at GEA. After the single-seat control valve D-tec® P/DV in 2018, GEA now presents the last piece of the puzzle for the D-tec® range – the double-chamber valve D/DV. GEA can therefore consistently plan greenfield projects with D-tec®; a retrofit for the single-seat valve is available for existing plants.
Hygiene philosophy
With the D-tec® double-chamber valve, GEA now offers aseptic valves for both hygiene classes “Aseptic” and “UltraClean”, which are tailored to the special conditions of the respective applications.

GEA recommends this distinction according to its hygiene philosophy: “Aseptomag® – our stainless steel bellows technology – is the premium class of aseptic valve technology, which we recommend for highly sensitive products such as baby food and UHT milk. These require uncompromising aseptic execution of the processes and components,” says Mr Bär. “But a large proportion of the beverages produced by our customers are not conveyed under aseptic conditions but fall into the second highest hygiene level according to the VDMA guideline, which is hygiene class IV, UltraClean.

Our new double-chamber valve in the D-tec® line is precisely tailored to the process requirements of this hygiene class”. D-tec® is ideally suited for products such as iced tea, fruit juice, fruit yoghurt and ESL milk, where product parameters such as pH value, cold chain, storage and shelf life play a decisive role.

Operational safety
The heart of every D-tec valve is the hermetically sealed D-tec® stem diaphragm, which offers a higher contamination protection against the atmosphere and thus ensures the microbial stability of the product throughout the entire process. The diaphragms are made of a thermoplastic which is more flexible than stainless steel. For example, it can compensate for pressure hammers and, to a certain extent, forgive process failures, says Mr Bär. If a diaphragm should break, leakage detection still ensures a high level of operational reliability. The product manager adds: “Our product development is geared towards ensuring system availability and cost-effectiveness for beverage and food producers. The new double-chamber valve fulfils this maxim: it can be used very flexibly and combines high hygiene quality with manageable operating costs”. In addition, the maintenance-friendly design minimizes system downtimes.
Like the entire D-tec® valve line, the D/DV doublechamber valve is based on the proven VARIVENT® modular system, which is characterised by its adaptability. This allows the valve to be configured according to the process conditions. Characteristic of this double-seat valve are the two diaphragms which hermetically seal the interior of the product from the atmosphere. It is currently available in nominal sizes DN 40 to DN 80 and OD 1.5” to OD 3”. The nominal sizes DN 100 and OD 4” will follow shortly. The valve seat can be soft- or hard-sealed, the latter with the popular TEFASEP® gold seal.

In addition, D-tec® double-chamber valves can be operated with one, two or three T.VIS® control heads of various designs. GEA D-tec® D/DV complies with all common industrial standards.

About GEA
GEA is one of the largest suppliers for the food processing industry and a wide range of other industries that generated consolidated revenues of approximately EUR 4.8 billion in 2018.
