James Walker introduces Supagraf HT valve stem packing

James Walker has developed and tested a unique high-performance packing ring set suitable for critical valves handling ultra-high temperatures as well as chemically aggressive and corrosive media such as molten salt. This field-tested and 3rd party-validated concept has demonstrated significantly extended valve service life as well as reduced leakage and will improve overall operational efficiency as well as health and safety in plants using molten salt technology.

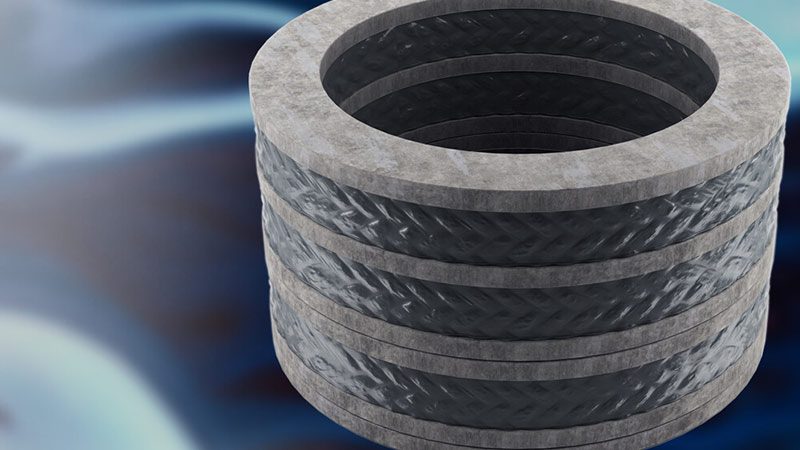

Supagraf HT is a premium grade unique combination set construction comprising intermediate spacers and end rings of high temperature mechanically stable DS Pro material supported by high purity graphite-based intermediate packing rings.

The graphite rings are manufactured in high-performance packing braided from high purity 98% exfoliated dry graphite yarn with a passive corrosion inhibitor and reinforced with fine Inconel wire. This material is free from all other additives or dispersions in order to maximise temperature and corrosion resistance capabilities.

The DS Pro precision cut spacers are made of state-of-the-art material designed for electro-mechanical and thermo-mechanical applications with excellent resistance to heat and open flame up to 1000°C (1832°F). DS Pro possesses excellent electrical insulation and high resistance to pressure as well as being impervious to most chemicals such as molten salt.

Product testing has included field trials in a molten salt heat transfer application for a CSP plant where one of the main benefits gained by the end user was the ability to remove the expensive and problematic bellow sealing arrangement that had previously been used for valve stem sealing in molten salt applications.
