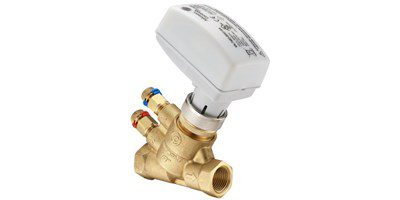

The compact VP140 Pressure Independent Control Valve provides accurate flow under varying load conditions, with a patented cartridge for robust performance.
Johnson Controls announces a new addition to its line of pressure independent valves that deliver stable temperature flow regardless of pressure fluctuations. The new compact VP140 Pressure Independent Control Valves (PICVs) provides a small footprint valve with robust performance. Its patented cartridge is designed for maximum resistance to dirty water, ensuring performance does not degrade, even in less than ideal water conditions.
Traditional systems are balanced at full-flow positions; however, under actual conditions, pressure dynamics often result in either too much or not enough flow through the coils, even though the valve position did not change. Compared to a pressure-dependent valve, the automatic balancing action of the PICV regulates pressure to reduce temperature fluctuations caused by changing load conditions in other areas (zones) of the building. This reduces pumping requirements and lowers demand on the heating or cooling system.
Including a PICV also helps simplify specification. Valves are selected based on the design flow rate of the coil, eliminating the need for sizing based on Cv calculations. PICVs provide the appropriate flow given the load requirement of the coil, which is determined by the actuator position and not the pressure differential seen by the valve. The PICV also reduces installation and upfront equipment costs by enabling the right-sizing of equipment within the HVAC system.
The PICV combines the function of a control valve, pressure-balancing valve and regulating valve into a single valve, eliminating the need for intensive system balancing, while providing the right flow, at the right time. As additional zones are added, the system can be commissioned zone-by-zone, reducing lifecycle costs by minimizing re-commissioning expense.
