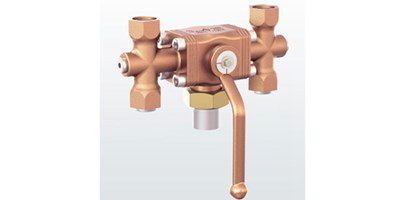

Goetze KG offers an extension of the product range in the field of cryogenic applications. The diverter ball valve has a pipe connection and is therefore even more flexible. The external thread can be welded or soldered directly to the pipe and then connected to the fitting with the union nut.
As with the 2780 series, connections for suitable bursting discs are also located on both sides. In case of maintenance of the safety valves or to replace the bursting discs, the corresponding side to be maintained can be shut off from the container by means of the change ball valve. This is particularly necessary for systems for the storage of cryogenic liquefied gases or for refrigeration systems.
The gunmetal fitting is available in the nominal size DN 20 and the pressure stage PN 63, the outlet size is in the standard version ½ inch.
