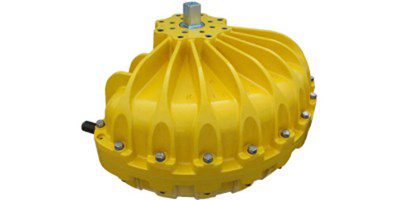

With a torque output of 356,977 lbf in (pound force inch) at 100 psi, the new Kinetrol Model 60 pneumatic rotary actuators double the output capability for Kinetrol actuators. Now, loyal Kinetrol users can get the same precise, long-lasting and trouble-free operation for larger valve installations. Prior to the Model 60’s introduction, the Kinetrol Model 30, capable of producing 168,000 lbf in, was the largest Kinetrol size available. With the doubling of output torque capability, Kinetrol can now provide better control and longer life to larger ball, butterfly and plug valves. In the past, shorter life, less reliable scotch yoke actuators were the only option available.
The Kinetrol model 60 standard features include: Double-Acting and Spring-Return options; 2” Air ports as standard; Standard working temperature range from -40°F to +176°F; Angle of travel adjustable from 80 to 100 degrees; Displaced volume is 6284 in³; Kinetrol VLS / ULS / XLS Limit Switch Box options; AP Positioner options; ATEX Category 2 approval; Housing: Sand cast aluminum alloy; Vane & Output shaft: SG Iron, zinc plated; Shaft bushings: PTFE coated bronze; Seals: Molded polyurethane and Seal expenders: Stainless spring steel.
