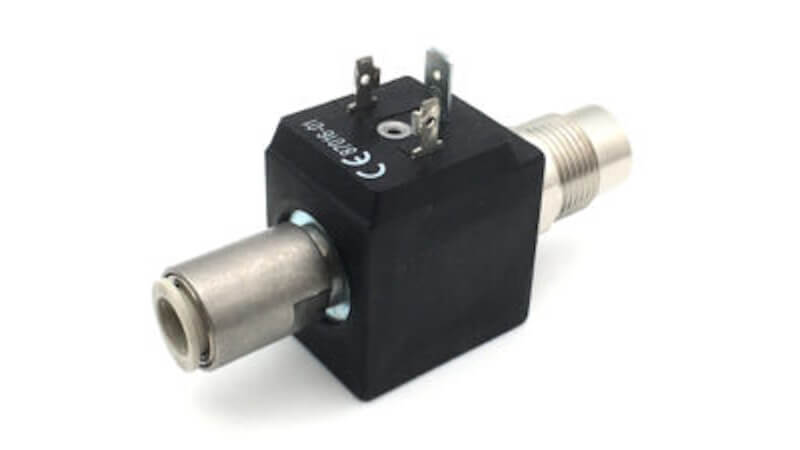

Bavaria Fluid Systems new flow-optimized and low dead space 2/2-way low-pressure coaxial solenoid valve BMV8 in stainless steel offers a reliable solution for the control and regulation of low-viscosity aggressive liquids in various applications, such as beverages, chemicals, alcohols, distilled or demineralized water, and oils. Due to its low variation in manufacturing tolerances, this valve enables accurate and consistent dosing.
Technical details: 2/2-way low-pressure coaxial solenoid valve; Direct switching; Normally closed; Completely redesigned, low dead space and flow-optimized interior in hygienic design; Double sealing system; Removable valve seat; Low maintenance and easy to service; Very easy to clean; Compact design; Basis for a modular system; Nominal sizes: 1.0 mm to 5.5 mm; Pressure range: 0 bar to 50 bar, optionally >100 bar depending on nominal width and connection; Materials: Stainless steel, EPDM / FKM / other sealing materials on request; Operating voltages: 12 V DC to 230 V AC; and Connections: Pushin-fittings 5/16″ or 3/8″, other connection options on request.
