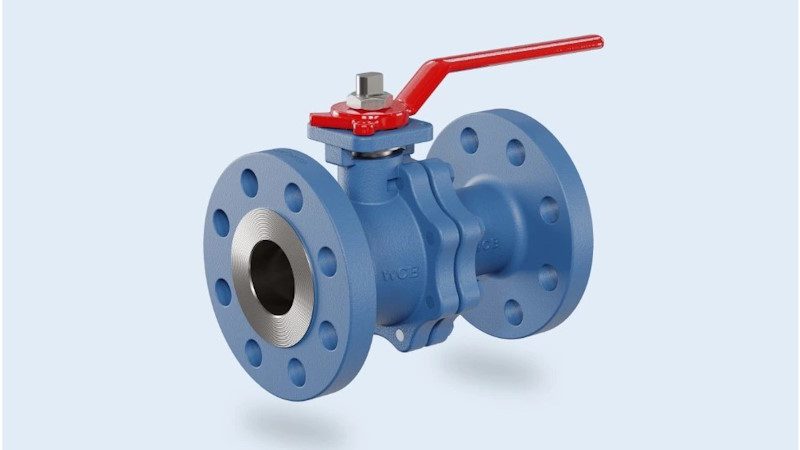

300- This number is relevant for NieRuf’s new FK14 ball valve series, which now allows for offering ball valves in accordance with ASME with flanges in ANSI 300. The flanges comply with ASME (B16.5) as well as the entire ball valve design (B16.34).
These are available in nominal sizes from DN15 (1/2”) to DN200 (8”) for cast steel and stainless steel body materials. Depending on the operating pressure, both materials can withstand temperatures of up to +230°C.
Continuous expansion of its ANSI range: ANSI 300 ball valves, including ISO 5211 plate for actuator mounting now available.
Other features include: Max. pressure 50 bar (for steam up to max. 12 bar); Fire-Safe; Fugitive emissions to prevent over pressure; and Anti blow-out stem.
