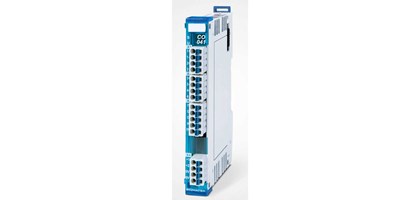

S-DIAS module CO 041 for precision valve control

For exact dosing, of adhesive or fluid applications, precision valve control is needed. The S-DIAS module CO 041 provides four current-controlled PWM outputs, which can also be operated as pulse signal outputs – for example, to control micro-dose valve controllers. In addition, four digital +5 V inputs are integrated.

Up to four valves can be controlled with the CO 041. The supply voltage for the valves ranges from 18-55 V, and the maximum holding current is 1 A at an inrush current of up to 3.5 A.

Inrush and continuous currents are adjustable to ensure a good, dynamic response from the valve. The period frequency of the holding current can be set between 30 Hz and 20 kHz.

For configuration as pulse signal outputs (push-pull), the maximum current per channel is 1 A. The minimum turn-on time is 50 µs.

Regardless of the operation mode, the outputs can be set with an on/off delay in 1 µs increments from 0 to 32.77 ms.

The CO 041 allows stand-alone operation without a CPU. In this case, the four integrated digital inputs (TTL signal) are used for direct control of the respective outputs.
