High-efficiency self-modulating pump protection valves offer reliability and cost savings.

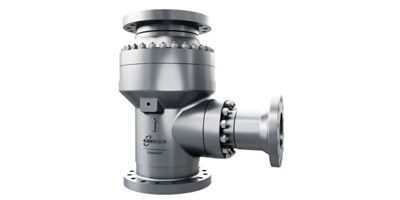

SCHROEDAHL, a CIRCOR International brand and an international leader in pump protection and flow control technology, announces that new, self-modulating TDL Automatic Recirculation Valves (ARVs) are now available in more than 35% lighter cast material. These reliable all-in-one pump protection solutions are designed to keep pumping systems in process, firefighting, refinery, power and chemical applications modulating and running smoothly, without cavitation or overheating.
Without minimum flow, a pump can quickly suffer grave damage, causing downtime and costly repairs—but control valves for recirculation require continuous control of complex equipment, a flow measurement device, control unit, and energy supply. Unlike control valve packages, the self-operated flow-sensitive SCHROEDAHL TDL Automatic Recirculation Valves operate without a separate power supply or any control system—and begin protection immediately once installed.
SCHROEDAHL TDL Automatic Recirculation Valves combine a high-quality main line check valve and the automatic bypass control system in an innovative and durable design—developed by the inventor of automatic pump protection. The valves’ self-actuated integrated bypass control function ensures minimum flow rate, guarding pumps against overheating and cavitation. The systems provide high pump stability—with less vibration and fewer coupling or gear problems—for less downtime and lower maintenance costs. TDL ARVs’ modulation bypass function also offers savings for operators with reduced energy consumption for frequent partial load operation.
Additionally, the bypass check valve prevents reverse pump flow, and allows for parallel pump installations. With extremely low valve hysteresis, TDL ARVs promote increased and reliable pump performance.
These valves are designed and built with high bypass trims size flexibility and with a wide variety of materials. TDL ARVs’ high bypass flow offers maximum flexibility in bypass trim sizes for pumping systems from 10- to 20-inch nominal pipe size (NPS). Available in EN/DIN and ASTM materials, TDL ARVs also feature a compact cast housing design for lightweight installation.
