A new, horizontal-spindle, 5-axis machining centre has been introduced by DMG Mori capable of maximising productivity when machining complex workpieces weighing up to one tonne.

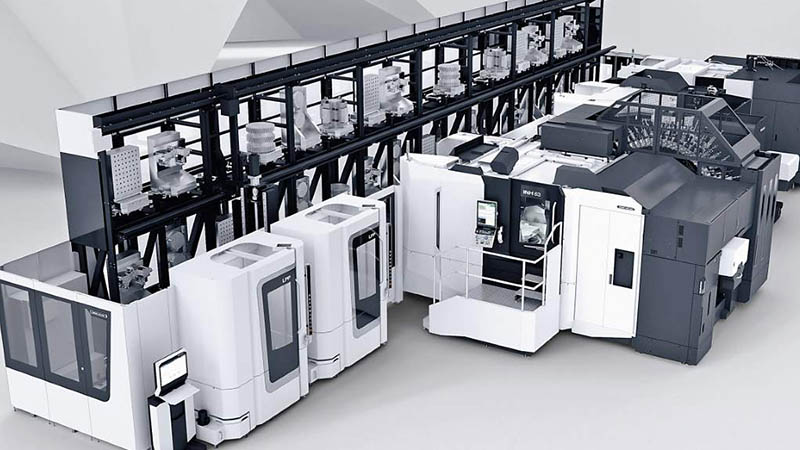

The robust INH 63 has a working volume of 1,070 diameter by 1,000mm high and a maximum pallet size of 630 x 630mm. Due to its compact dimensions, it can be integrated easily into automated production systems.
Dies, moulds, battery boxes for electric vehicles, and aerospace valve bodies are typical components that might be produced on the machine. Its stable design with a symmetrical structure optimised by FEM and twin ballscrews in all orthogonal axes promotes precise, dynamic milling. Magnescale linear encoders result in high positioning accuracy, while reliable cooling of the ballscrews and other sources of heat suppress thermal displacement and changes in the machine structure.
Compared to the previous model, the manufacturer has increased the cutting capacity by 65%. For 5-axis machining, the INH 63 swivels the rotary table from + 45 to -195°, direct drive motors delivering speeds of 90rpm and 30rpm respectively.
The powerMASTER spindle is rated at 12,000rpm, 808Nm, and 85kW (10%), while a version with up to 16,000rpm or 1,414Nm at 8,000rpm is optional for heavy-duty cutting. For Master spindles, DMG Mori provides a warranty of 36 months with no runtime limit.
The wheel magazine, which has 63 tool positions as standard, can be expanded to six wheels, providing space for 363 tools up to 320mm in diameter by 700mm long and weighing 35kg (optionally 50 kg). The high capacity allows long periods of autonomous operation if a large pallet storage solution is integrated.
