Liquid and gas flow control specialist Bürkert has launched a range of valves designed to control ultra high-pressure flow for hydrogen infrastructure applications.
The range includes solenoid valves and process valves that can control hydrogen up to 1,000bar, suitable for grid infrastructure and vehicle fuelling stations. The valves are designed for long service life and meet all the required safety conformance for hydrogen infrastructure.
The valves are designed for high-pressure hydrogen applications including compression, storage, and transport. The range comes into its own downstream of Hydrogen Production via electrolysis when the gas needs to be compressed to either store it or transport it. Bürkert’s new range is also capable of managing hydrogen supply for vehicle fuelling stations.

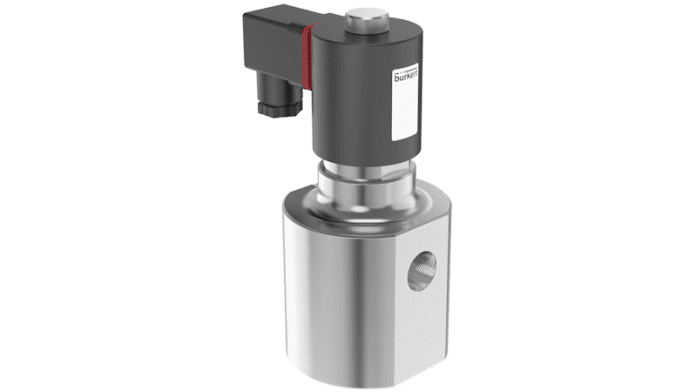

The solenoid valve range for on/off control consists of a direct acting valve and two servo-assisted valves. The Type 6080 direct acting valve can open or close without any assistance from the media passing through the valve and can operate from 0 Barg. It can manage pressures up to 900 bar, and is available with orifice diameters including 0.5 mm and 0.7 mm.
The Type 6480 and 6481 servo-assisted valves rely on a pressure differential across the valve to help it open and close. The type 6480 requires a 5-bar pressure differential while the 6481 needs a 1 bar pressure differential. The Type 6480 servo piston valve can control hydrogen flow up to 1,000bar and is available with an 8mm orifice. The Type 6481 is suitable for hydrogen pressures up to 450 bar and is available in orifice diameters between 12mm and 50mm.
Bürkert’s new range for ultra high-pressure hydrogen applications also includes the Type 2111 and Type 2121 process valves for on/off control, which are pneumatically operated. The Type 2121 is available with 12mm to 50mm orifice diameters and can manage hydrogen up to 600bar. The Type 2111 features 4mm and 8mm orifice diameters and is able to handle hydrogen up to 1,000bar.
