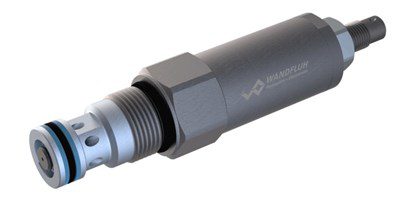

Wandfluh’s direct operated pressure reducing valve regulates the manually adjusted output pressure independent of the input pressure and the volume flow. With its seattight construction, the valve closes the output leakage-free against the input as soon as the adjusted output pressure is reached.
The valve can be operated with input pressures of up to 350 bar and volume flows of up to 20 l/min. The output pressure ranges of 160 and 315 bar are available. The valve with the designation MSSPM22 is available as a 2-way function in a 2-step M22 ISO cavity. The external parts of the valve have a high corrosion protection through the use of stainless materials.
